Premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape
| Product | Model No. | Normal Specification |
| ZK 2028 Waterproof Insulation Tape | 1 | 51mm*1.65mm*3m |
| | 2 | 51mm*1.65mm*1m |
Waterproof Insulation Tape Brief introduction and installation:
A conformable self-fusing rubber electrical insulating and sealing tape. KC80 consists of ethylene propylene rubber (EPR) and butyl mastic adhesive. It has strong adhesion to copper, aluminum, and cable jackets. It provides excellent waterproofing performance and temperature stability at 90℃,and withstanding of overload temperature up to 130℃.
Installation:
Step 1 Wipe off the dusts on the splice area before wrapping.
Step 2 Remove the liner and stretch the tape to 1 to 2 times of its original length, apply the tape in 50%-lapped with mastic side toward area to the wrapped. Stretching the tape to 4 times of its original length is not recommended.
Step 3 Make sure there is 30mm to 50mm wrapping tape above both sides of the splice area.
Step 4 After waterseal mastic tape is applied, overwrapping PVC insulation tape is recommended, apply 3 layers of PVC insulation tape in a 50% overlapping with no tension. Make sure not to overstretch the PVC tape during installation.
Waterproof Insulation Tape Product Features:
◆ Continuous waterproofing.
◆ Highly self-fusing tape.
◆ Suitable for irregular shapes cable.
◆ Resistance to high/low temperature.
◆ Resistance to corrosion.
◆ Resistance to ozone, UV, xenon exposure.
◆ New formulation for insulation.
◆ Operation and installation easily.
◆ Excellent adhesion to copper, aluminum and cable jacket.
Waterproof Insulation Tape Product Application:
For For telecommunication,electrical industry.
Waterproof Insulation Tape Technical parameters:
| Technical parameters | | Performance | Typical data | Test method | | Tensile strength | 1.29MPa | ASTM D 4325 | | Elongation at break | 970% | ASTM D 4325 | | dielectric strength | 26.5KV/mm | ASTM D 4325 | | Adhesion(180°,steel plate) | 78.4N/10mm | ASTM D 1000 | | Heat aging | Pass | ASTM D 4388 | | Ozone aging | Pass | ASTM D 4388 | | UV aging | Pass | ASTM D 4388 | | Xenon lamp | Pass | ASTM D 4388 | |

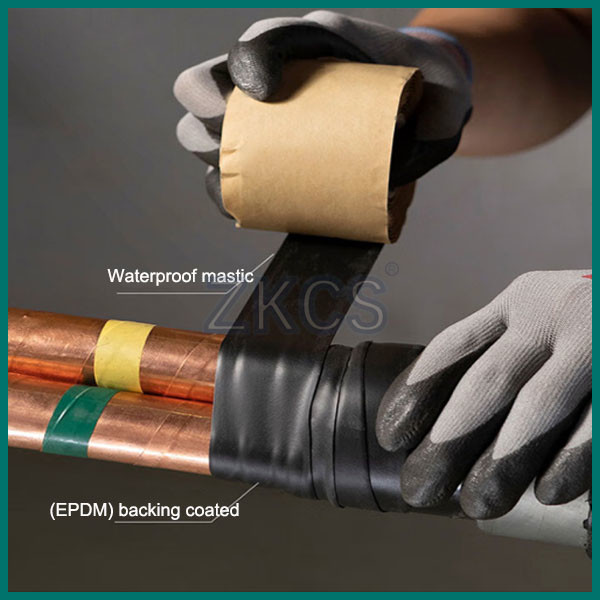

Product pictures for reference.
For your information:
| Trade terms | FOB, EXW, CIF, |
| Payment terms | T/T, L/C, Negotiable |
| MOQ | 500 |
| Supply capability | 300000 pieces per month |
| Lead time | usually 10 working days |
| Shipment | Express, air, sea |
| Port | Shenzhen |
| Sample availability | Yes |
| Sample time | usually 3-5 days |
| Packaging | Normal: Plastic bag & Carton & Pallet
Special: Customized packing |
